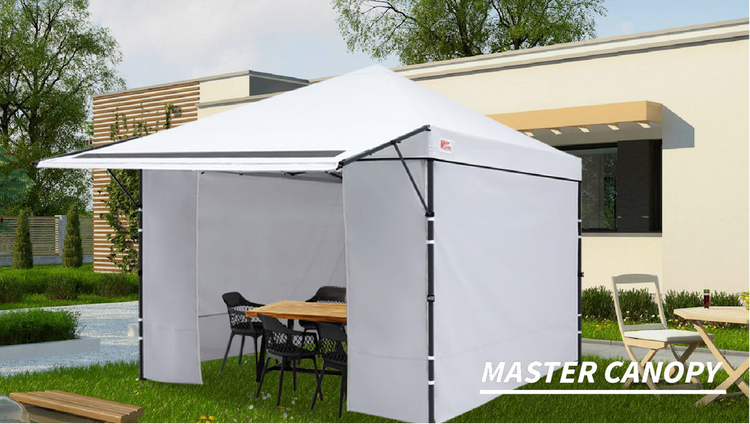

Leisure Sports Canopy with Awning & Sidewalls – Installation Manual

Leisure Sports Canopy with Awning & Sidewalls – Installation Manual

⚙️What's Included

Folding canopy frame

Canopy top cover

Front awning (with poles & connectors)

Sidewalls x 2 (mesh window + zipper door)

Hook & loop fasteners / Straps

Ground stakes & ropes

Carrying bag



🛠️Installation Steps

Step 1: Unfold the Frame

Stand two people at opposite corners.

Gently pull apart the folding frame until it is about halfway open.

Ensure the frame is upright and not tilted.

Step 2: Attach the Canopy Top

Place the canopy fabric over the semi-opened frame.

Align the corners of the fabric with the frame's top corners.

Use Velcro straps to secure the canopy top to the truss bars and frame corners.

Step 3: Fully Expand the Frame

With one person on each side, continue pulling the frame outward until it locks into place.

Push the center hub upward gently (if applicable).

Step 4: Adjust the Height

Press the button on each leg and raise the canopy to your desired height.

Make sure all legs are locked in place at the same level.

Step 5: Install the Awning

1.Connect the Round Awning Rods (with internal cords):

Snap the poles together to form one long flexible pole.

2.Insert Rod into Awning Fabric:

Slide the round rod through the sleeve of the awning.

3.Attach Square Support Rods to Legs:

Use the plastic clamps to secure the square rods to the front legs of the canopy.

4.Connect Round Rod to Square Rod:

Insert ends of round rod into holes at the end of square rods.

5.Tie Awning to Canopy:

Use the provided ropes to connect the awning edge to the top canopy for added support.

Step 6: Add Sidewalls

Align sidewalls with the canopy legs.

Use Velcro straps to attach them to the frame.

The zippered side can be used as an entrance.

Make sure mesh windows face outward.

Step 7: Secure the Canopy

Use stakes and ropes to secure the legs to the ground.

For added stability, use sandbags or weights if available.



Tips

For best results, assemble with 2 people.

Avoid setup during strong winds.

Store fabric dry to prevent mildew
