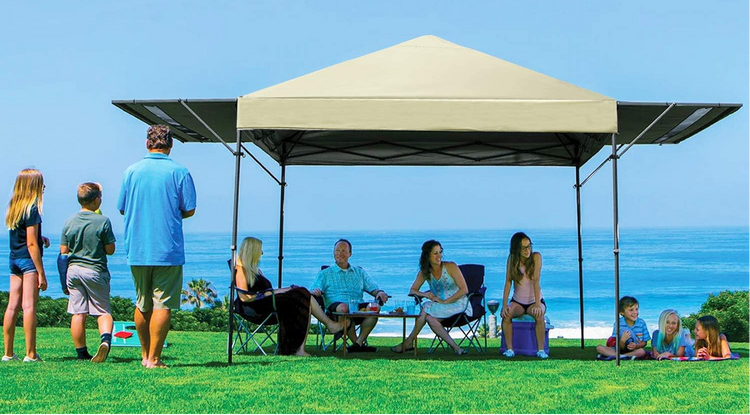

🏕️ MasterCanopy Pop Up Canopy Tent with 2 Shelters Installation Manual

📦 Package Contents

• 1 × Pop-up Canopy Frame

• 1 × Canopy Top Cover

• 2 × Side Shelters (with zipper or Velcro)

• 4 × Support Poles for Shelters

• 4 × Guy Ropes

• 4 × Ground Stakes

• 1 × Carrying Bag

🛠️ Installation Steps

✅ Step 1: Choose a Location & Unfold the Frame

• Select a flat, open space with no overhead obstructions.

• With two people, remove the frame from the carry bag.

• Each person grabs two opposite legs and gently pulls the frame outward until it's halfway open.

⚠️ Do not fully extend the frame yet to make top cover installation easier.

✅ Step 2: Attach the Canopy Top Cover

• Unfold the canopy top and lay it over the partially opened frame.

• Align the corners and fasten them to the frame using Velcro straps or loops provided.

✅ Step 3: Fully Expand the Frame

• With two people, continue pulling the frame outward until all corners lock into place with a “click” sound.

• Make sure the frame is fully stretched and secured.

✅ Step 4: Adjust the Leg Height

• Press the push-button on each leg and raise the canopy to the desired height setting.

• Release the button to lock the leg in place.

• For best performance, extend all legs to maximum height.

✅ Step 5: Attach the Side Shelters

• Locate the two side shelters and unzip/unfold them.

• Connect each shelter to one side of the canopy using zippers or Velcro fasteners.

• Insert the two support poles under each shelter to create the angled shade extension.

• Use ground stakes to secure the shelter pole bases for stability.

✅ Step 6: Secure the Canopy with Ropes and Stakes

• Attach guy ropes to the top corners of the canopy.

• Stretch each rope outward at a 45° angle and stake it into the ground using ground stakes.

• Double-check that all points are tightly secured, especially in windy conditions.

✅ Step 7: Disassembly & Storage

• Detach side shelters and support poles.

• Remove guy ropes and ground stakes.

• Lower all legs by pressing the push-buttons.

• Collapse the frame by pushing inward from opposite corners.

• Remove the top cover, fold it, and place all components into the carrying bag.

⚠️ Safety Tips & Usage Notes

• Do not use the canopy in heavy rain or strong wind.

• Always set up and take down with at least two people.

• Be careful with metal joints and avoid pinching fingers.

• Allow fabric to dry before storing to prevent mildew.

• Periodically check all straps, zippers, and fasteners for wear.
